Standard Features:
- Rubber coated spreading rollers with ground surface.
- Thickness gage indicator.
- Top & bottom glue trays in grinded steel with ground profile and micrometric glue
control.
- Parallelism control between spreading rollers.
- Rollers protection with security plate and foot control in front of the machine that
stop immediately the machine if activate.
- Security front foot barrier.
- Steel zinc coated water tray.
- Electric equipment on board of the machine under protective tubes; electric
system in waterproof cabinet and low voltage secondary circuits.
Technical Data and Specifications:
- Useful working width: mm 1600
- Maximum working thickness: about mm 90
- Working speed: mt/min 19
- Height of working level (adj. +/- 20mm) mm 905
- Spreading rollers Ø mm 185
- Standard grooving lines/inch 14
- Installed power kW 0.37
- Command side (looking at the entrance, in front of the machine): Right
- Standard Voltage: 230V/60/3
Available Options:

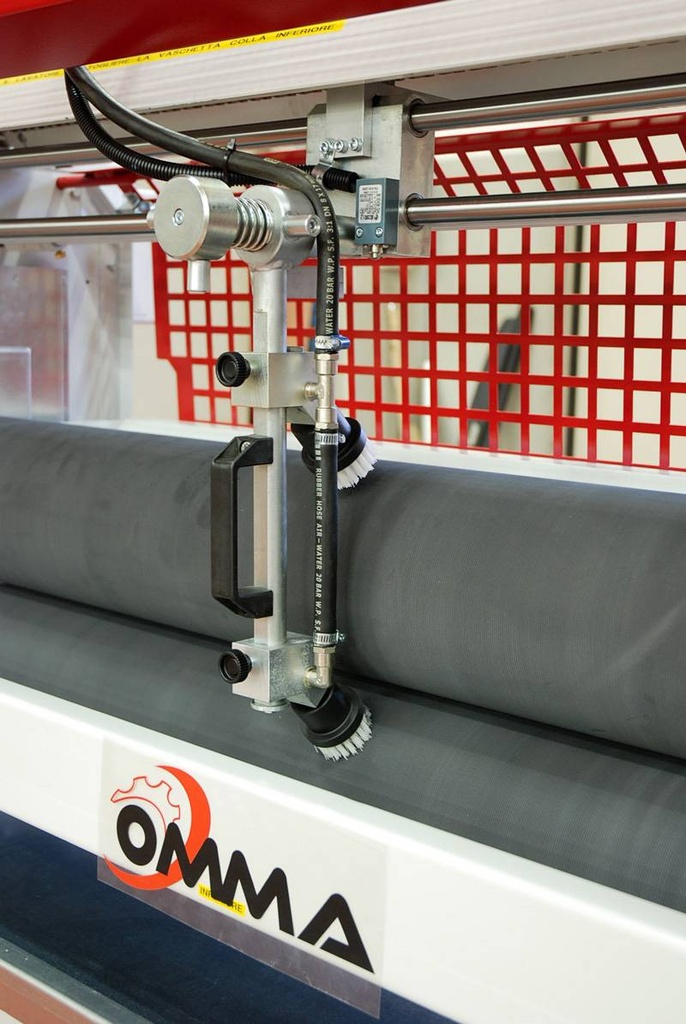

- Automatic Cleaning
