Vacuum Presses
Welcome to Evans Midwest, where innovation meets efficiency with our industrial vacuum press laminating solutions. Our specialized Greco line of 3D shuttle and clamshell style laminating presses is designed to cater to a broad spectrum of laminating needs. Whether you’re handling flexible or rigid vinyls, KYDEX® thermoplastic sheets, surf(x)®, or polystyrene, our machines are built to deliver exceptional performance. Our commitment to quality is evident in every product, ensuring that you receive the best laminating experience possible.
At the heart of our vacuum presses, like the VP 400C/500C Clamshell Models, lies our advanced infrared heating system, equipped with proprietary 375 watt “DuraLamp” heating elements. This system provides consistent, uniform heat distribution, crucial for high-quality lamination. Additionally, our non-contact IR sensor allows for precise temperature monitoring, ensuring optimal results every time. With various sizes available, including 4×4 and 4×8-foot options, we cater to different scale operations, ensuring there’s a perfect fit for your business needs.
Standard Features
- Welded tube frame
- Heating chamber to assure uniform heat
- 375-watt infrared “DuraLamp” heating elements
- Raytek non-contact, infrared thermal sensor
- Rear-mounted electrical enclosure
- Operator interface (HMI) with color monitor and PLC-controlled sequence of operation
- Stationary heating chamber
- Two (2) viewing windows
Optional Features
- Vacuum table
- Outrigger framework for vacuum shuttle table
- Heating and cooling cycle indicator light with buzzer
- Front-mounted vacuum gauge
- Oil-sealed, rotary-vane, single-stage, air-cooled and direct-driven Busch vacuum pumps
- Unwind stand for vinyl roll(s)
- Emergency stop system
- Available in 4×8, 4×10, 4×12 and 5×8-footsizes

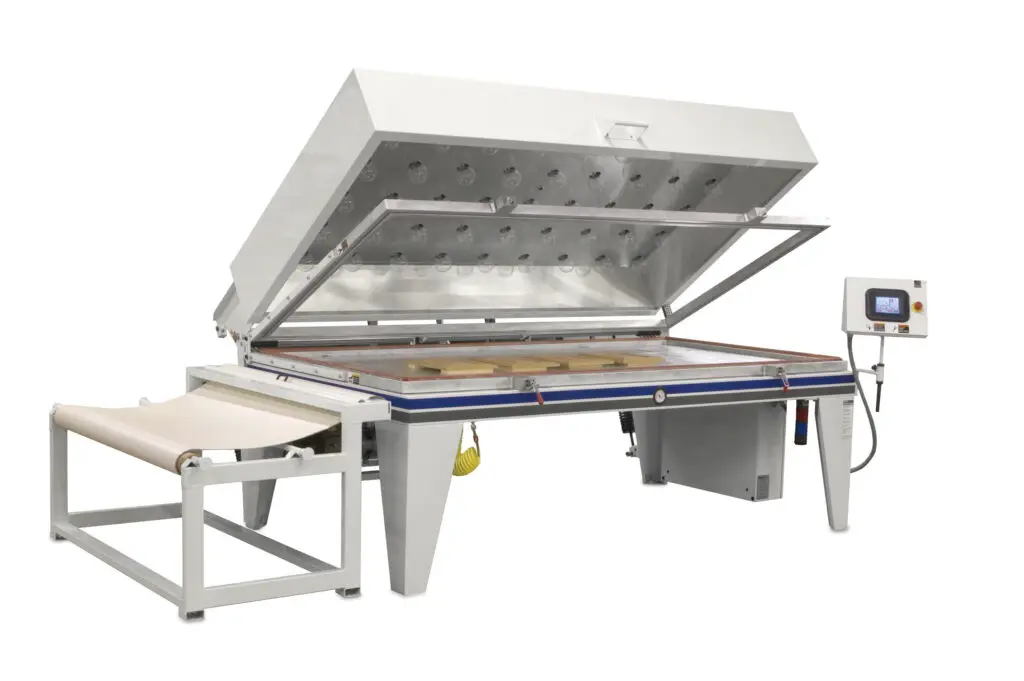

Clamshell Presses
Shuttle Presses
Key Features

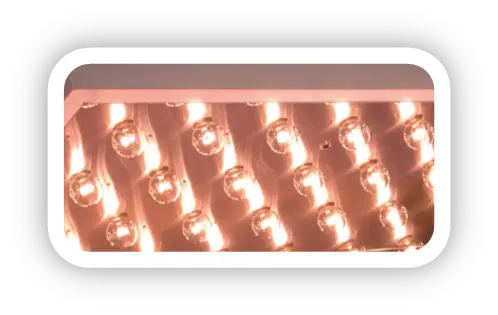

Infrared Heating
Our proprietary 375 watt “DuraLamp” heating elements rated at 10,000 hours, and a non-contact IR sensor

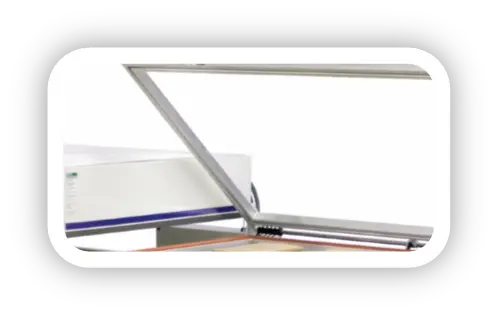

Proprietary Sealing
An intermediate flange with a proprietary extruded silicone seal allows 3D laminating with or without a membrane

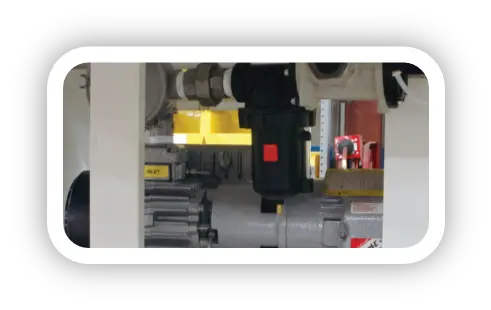

Vacuum pump
Standard 2 HP Busch vacuum pump creates a nearly perfect vacuum of 29.6 inches of Hg

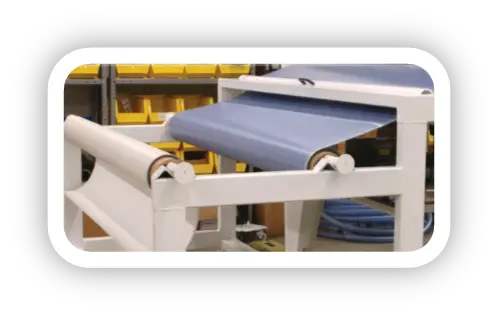

Unwind Stand
A double unwind stand facilitates handling of heavy and cumbersome thermofoil rolls

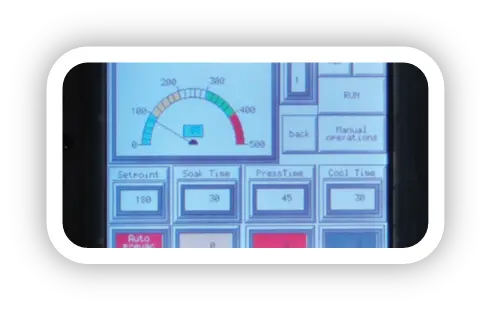

Operator Interface
Color monitor controls, heating, soak, pressure and cooling parameters, with enough memory to store 20 programs
