PR 0257 Pinch Roller


Standard Features:
- 62" Capacity Pinch Roller For Flat Panel Laminating
- Solid Top and Bottom Rollers
- Forward and Reverse Feed Directions
- Adjustable Pressure from 50-100 PSI

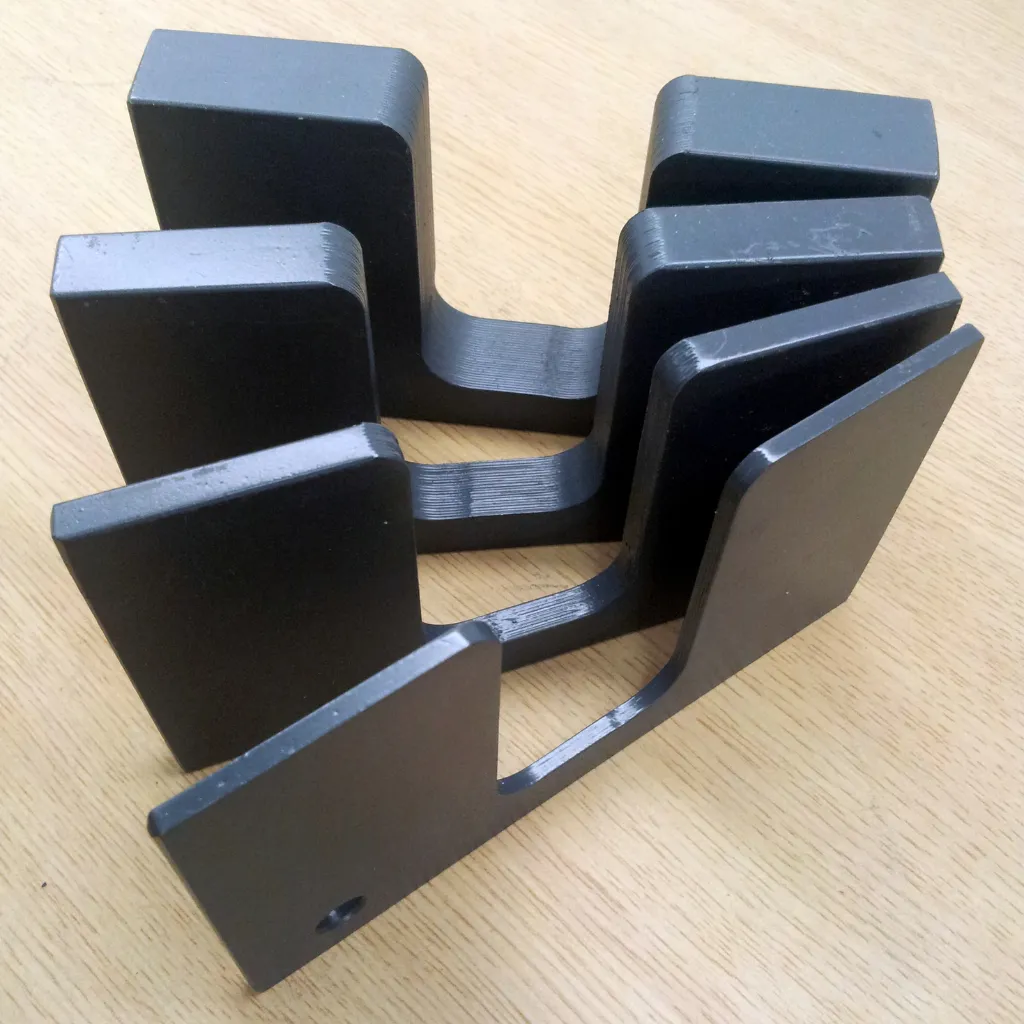

- Spacers Provided for Desired Thickness:
     (2) 1/8", (2) 1/4", (2) 1/2", (2) 3/4"
- Safety Gates on In-Feed and Out-Feed

Technical Data and Specifications:
- Maximum Width: 62"
- Maximum Thickness: 3" *Additional Shims Required
- Roll Diameter: 5.25"
- Roll Durometer: 60
- Pass Line Height: 30.5"
- Drive Motor: 0.5 HP
- Feed Rate: 50 FPM

- Electrical: 110V, 1Ø, 60Hz, 10A
- Air: 100 PSI

Shipping Dimensions 85" L X 33" W X 57" H
Shipping Weight: 766 LBS

Available Options:
- [0257-2] Variable Speed (0-50 FPM)
- [S1470] Riser (34"-38")
- [S845] Caster Kit

- [0206.14] 1" Spacer

0.00 0.00

  • Voltage (Dynamic)
  • Feed Rate (Dynamic)
  • Passing Line Height (Dynamic)
  • Outfeed Support Roller (Dynamic)
  • Machine Configuration (Dynamic)
Voltage (Dynamic): 110V, 1Ø, 60Hz

The PR 257 Pinch Roller is designed for consistent, controlled pressure during flat panel laminating operations. With solid top and bottom rollers, reversible feed, and adjustable pneumatic pressure, it delivers repeatable results across a wide range of panel thicknesses. Safety gates on both in-feed and out-feed provide added operator protection, making the PR 257 a dependable solution for shops requiring precision lamination up to 62 inches wide.
