Stacked Panel SIP Laminating Systems

Evans Midwest offers Stacked Panel SIP Laminating Systems designed for higher-volume production environments where efficiency, consistency, and throughput are critical. These systems are engineered to laminate multiple structural insulated panels in a single cycle, reducing press time while maintaining uniform adhesive coverage and bond quality.

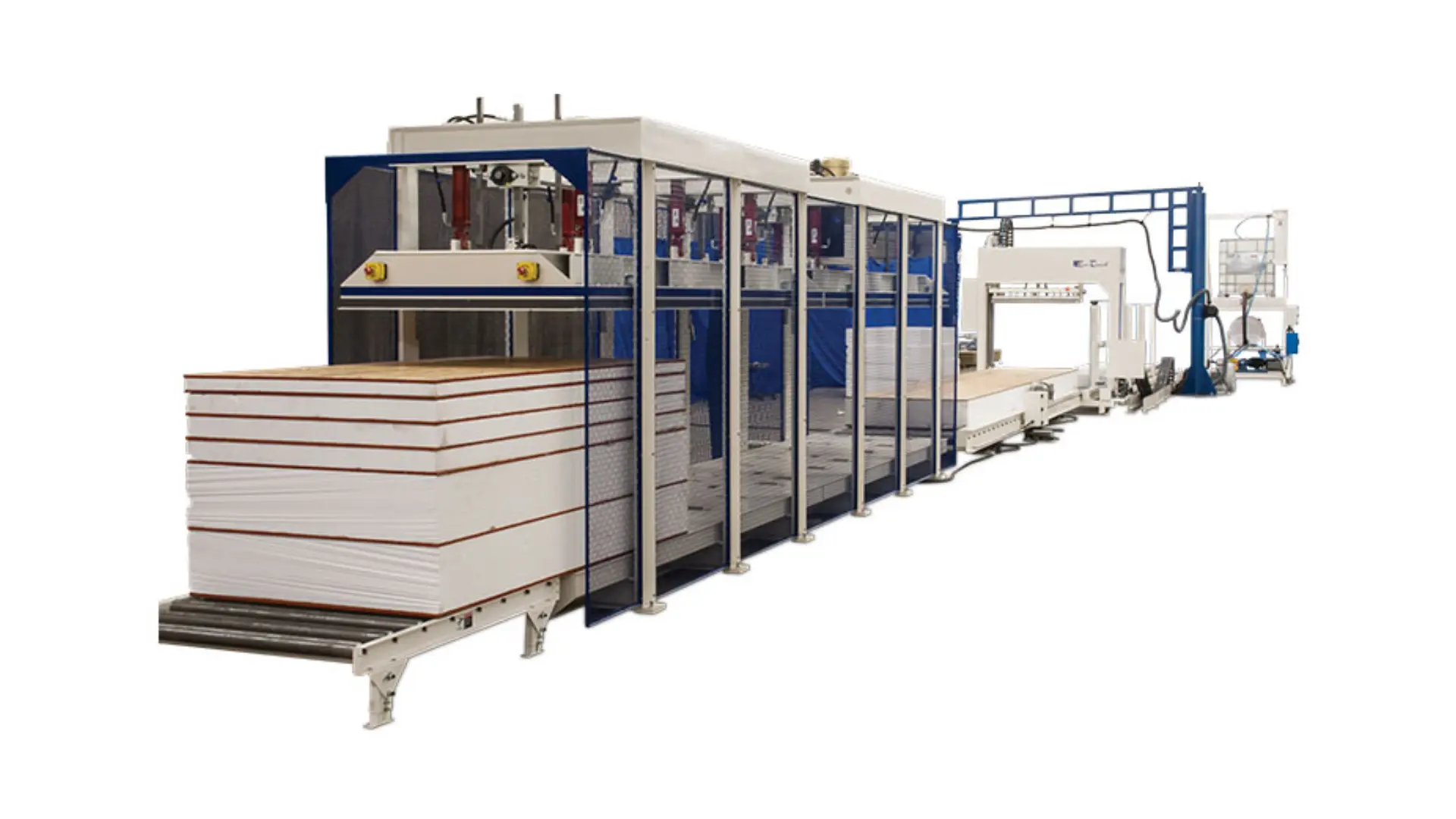

Built around a traversing gantry and cold press configuration, stacked panel systems are ideal for manufacturers producing standard SIP sizes at scale.

Evans Midwest post-lamination tooling solutions are designed to support efficient, repeatable fabrication of finished SIP panels. Each tool plays a specific role in helping manufacturers process laminated panels quickly while maintaining accuracy and consistency.

Designed for High-Volume SIP Production

Evans Midwest stacked panel systems utilize a traversing gantry with vertically adjusting dispensing heads, allowing adhesive to be applied evenly across multiple panels stacked in a single press load. This design minimizes cycle time while ensuring consistent adhesive placement from panel to panel.

Stacked configurations streamline material handling, reduce labor requirements, and improve overall line efficiency—making them well suited for automated or semi-automated SIP manufacturing operations.

SIP Laminating Catalog

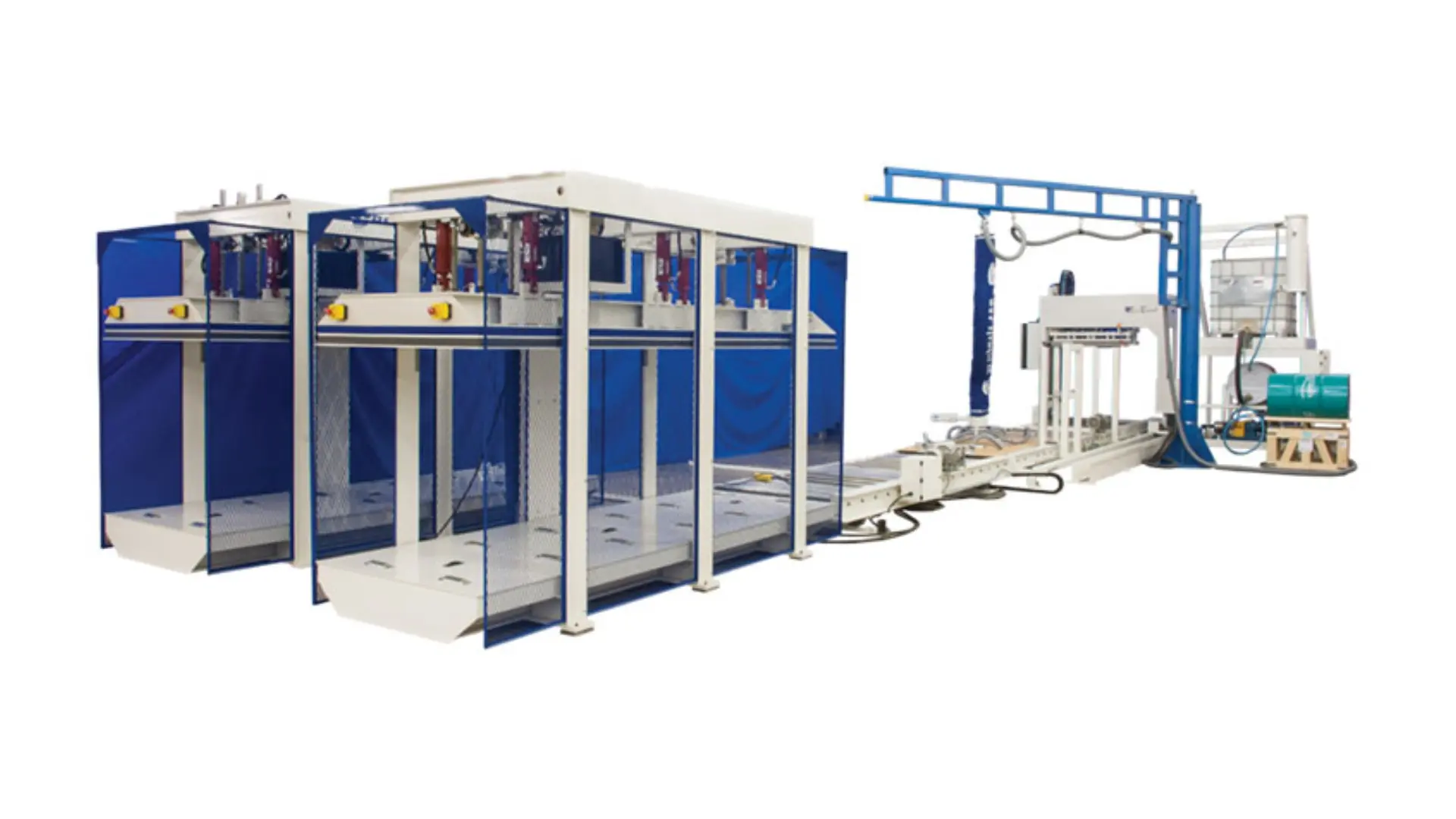

After adhesive application, panels are transferred into hydraulic cold presses that apply controlled, even pressure across the entire stack during the curing process. This ensures reliable bonding between facings and core materials while maintaining panel flatness and dimensional stability.

The cold press design supports repeatable results, long press life, and integration into complete SIP production lines.

Whether implemented as a standalone laminating cell or as part of a fully integrated SIP manufacturing system, Evans Midwest stacked panel lamination solutions are engineered to increase throughput, improve consistency, and support scalable SIP production.
