Evans Midwest CS XL Countertop Saw Cutting Station, 16"

Standard Features
  • Upper frame pivots 90° right and left of center with five (5) fixed position stops at 2 21/2°, 45°and 90°
  • Pneumatically retracted locking pin
  • Variable speed forward/reverse drive
  • Saw carriage is guided with linear bushings running on hardened and precision ground rails
  • Belt-driven saw arbor with dual ball bearings

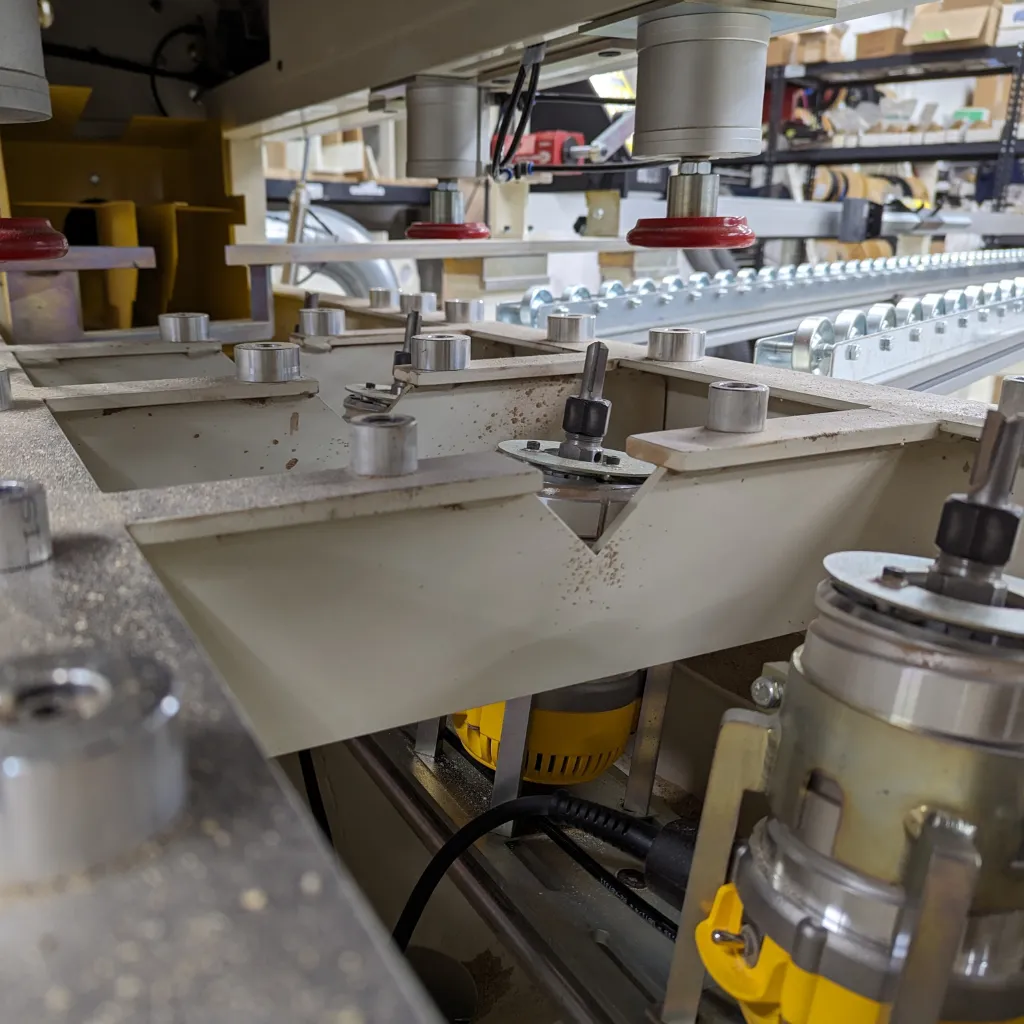

  • Routing system includes:
    • Four (4) router motors
    • Guiding template
    • PVC covered handle
    • Operator handle and safety interlock

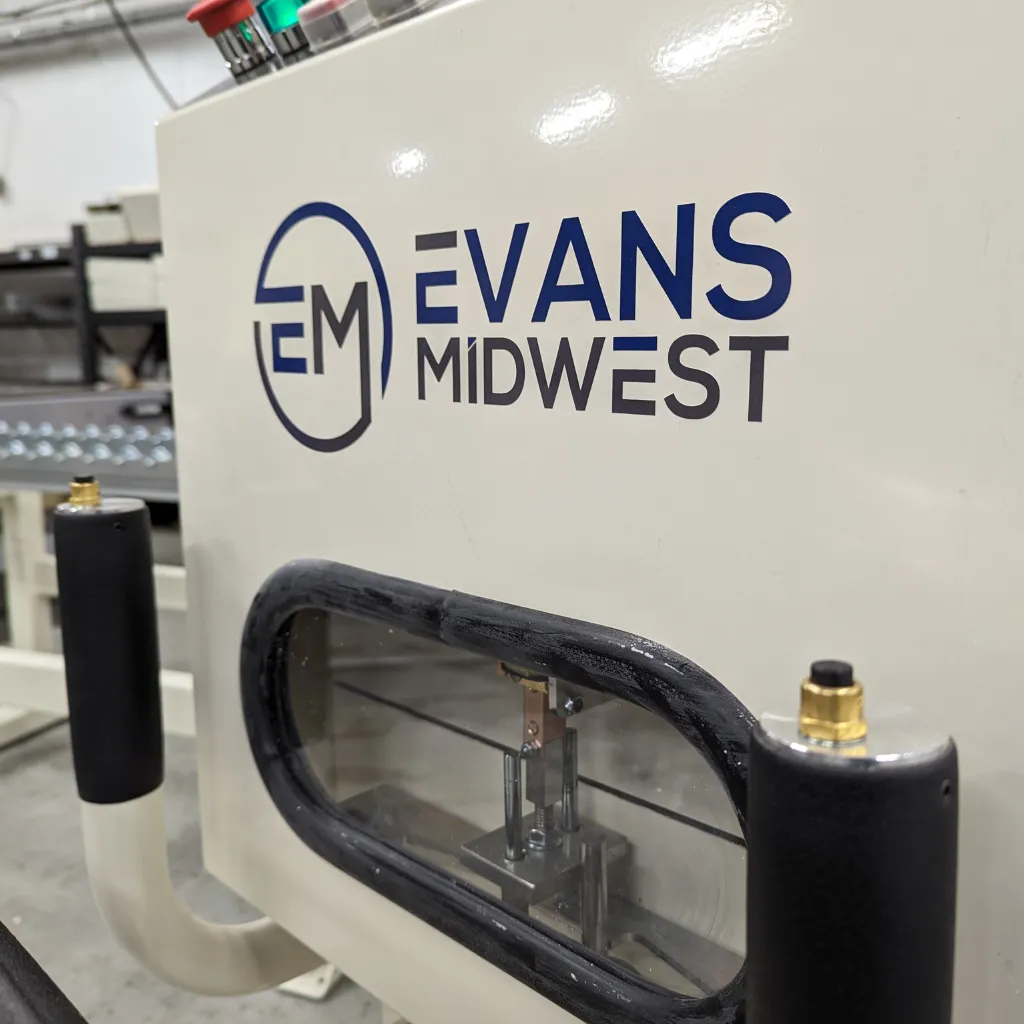

    • Router template window
    • Rotating router template pin with ball bearing
  • Two (2) adjustable pneumatic hold-down clamps per side
  • OSHA-recognized Awareness Barrier meets ANSI 01.1 safety requirements for woodworking machines
  • Three (3) dust collection hook-ups, with 4 inch (102 mm) ports
  • 41 1/2 inch (1055 mm) long heavy-duty fence
  • Plexiglass shield

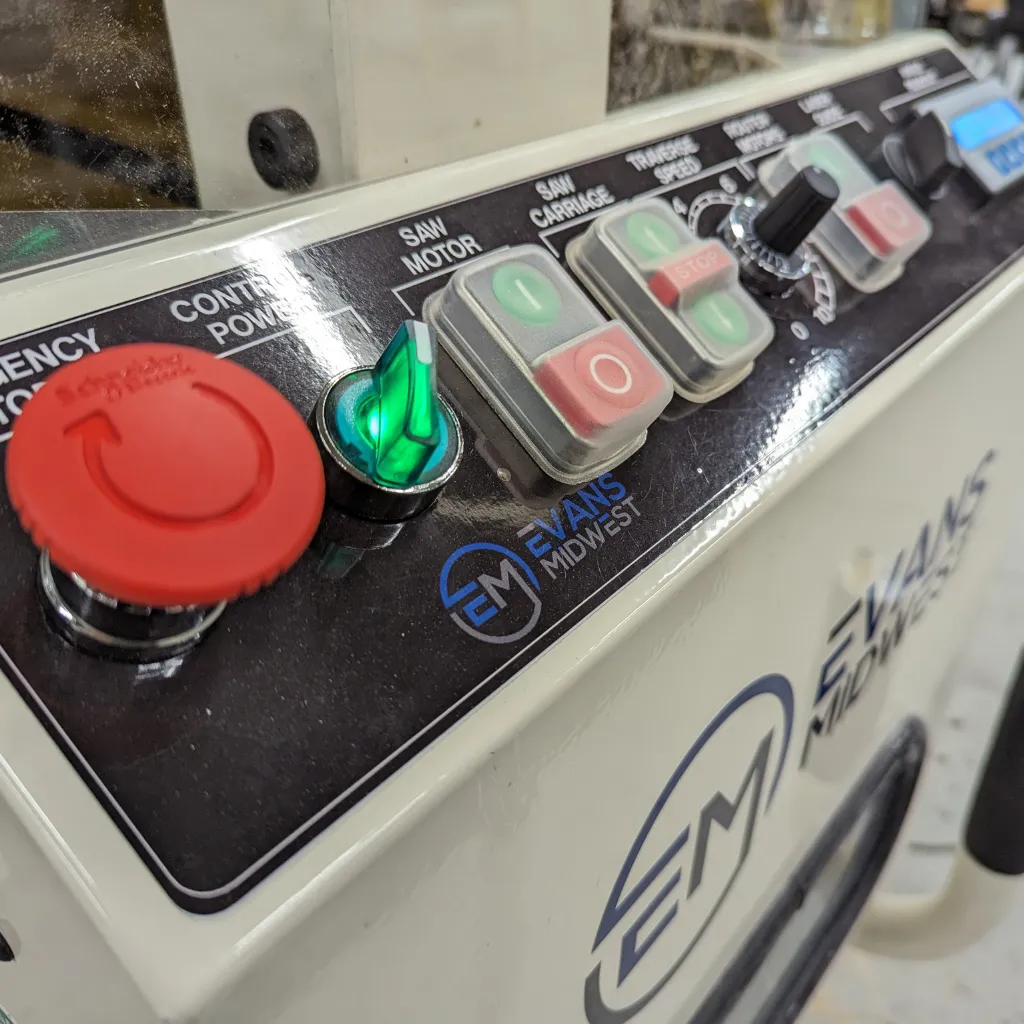

  • Low profile control panel
  • End guards with safety interlocks
  • 16 inch diameter (406 mm) carbide tip saw blade,100 teeth
  • Four (4) 1/2 inch diameter (12 mm) carbide tip router bits
  • Emergency stop
  • All Electrical components are UL & CSA certified

Dust Collection Requirements:
2,350 cfm minimum.

208/230/3
Cutting Length @ 90° = 54 in.
Cutting Length @ 45° = 37.5 in.
Cutting Height = 5-5/8 in.
Includes 16 in. Saw Blade, Standard Fence, Routing System, Router Bits, and Pneumatic Side Shield

Crated Dimensions:
125"L x 91"W x 87"H

2,760 LBS

$ 0.00 $ 0.00

  • Voltage
Add to cart
Contact Us
Documents
CountertopSaw-ProductDataSheet.pdf

Evans Midwest CS-XL Countertop Saw Cutting Station

The Evans Midwest CS-XL Cutting Station is a high-production countertop saw engineered for precision miter cutting and draw-bolt mortising in a single, streamlined operation. Designed for postforming, self-edge, coved, and solid surface countertops, the CS-XL delivers consistent accuracy while reducing handling time, scrap, and labor.

This industrial countertop saw combines a 16" saw blade with an integrated four-station routing system, allowing operators to complete angled or straight countertop cuts and mortises in one pass. Fixed miter stops at 22.5°, 45°, and 90° ensure repeatable results, while the linear-guided saw carriage and belt-driven arbor provide smooth, controlled cutting under production loads.

Built for real-world shop efficiency, the CS-XL Cutting Station can be operated by a single person with minimal training. Pneumatic hold-down clamps, safety-interlocked guarding, and integrated dust collection support both productivity and operator safety. Whether cutting laminated postformed countertops or solid surface materials, the CS-XL is a dependable countertop saw solution for high-volume fabrication environments.

Proudly manufactured in Holland, Michigan, the Evans Midwest CS-XL Cutting Station is a proven countertop saw platform trusted by shops focused on throughput, accuracy, and long-term reliability.
